New Orleans - Microcorruption
0010 <__trap_interrupt>
0010: 3041 ret
4400 <__init_stack>
4400: 3140 0044 mov #0x4400, sp
4404 <__low_level_init>
4404: 1542 5c01 mov &0x015c, r5
4408: 75f3 and.b #-0x1, r5
440a: 35d0 085a bis #0x5a08, r5
440e <__do_copy_data>
440e: 3f40 0000 clr r15
4412: 0f93 tst r15
4414: 0724 jz #0x4424 <__do_clear_bss+0x0>
4416: 8245 5c01 mov r5, &0x015c
441a: 2f83 decd r15
441c: 9f4f c245 0024 mov 0x45c2(r15), 0x2400(r15)
4422: f923 jnz #0x4416 <__do_copy_data+0x8>
4424 <__do_clear_bss>
4424: 3f40 0800 mov #0x8, r15
4428: 0f93 tst r15
442a: 0624 jz #0x4438 <main+0x0>
442c: 8245 5c01 mov r5, &0x015c
4430: 1f83 dec r15
4432: cf43 0024 mov.b #0x0, 0x2400(r15)
4436: fa23 jnz #0x442c <__do_clear_bss+0x8>
4438 <main>
4438: 3150 9cff add #0xff9c, sp
443c: b012 7e44 call #0x447e <create_password>
4440: 3f40 e444 mov #0x44e4 "Enter the password to continue", r15
4444: b012 9445 call #0x4594 <puts>
4448: 0f41 mov sp, r15
444a: b012 b244 call #0x44b2 <get_password>
444e: 0f41 mov sp, r15
4450: b012 bc44 call #0x44bc <check_password>
4454: 0f93 tst r15
4456: 0520 jnz #0x4462 <main+0x2a>
4458: 3f40 0345 mov #0x4503 "Invalid password; try again.", r15
445c: b012 9445 call #0x4594 <puts>
4460: 063c jmp #0x446e <main+0x36>
4462: 3f40 2045 mov #0x4520 "Access Granted!", r15
4466: b012 9445 call #0x4594 <puts>
446a: b012 d644 call #0x44d6 <unlock_door>
446e: 0f43 clr r15
4470: 3150 6400 add #0x64, sp
4474 <__stop_progExec__>
4474: 32d0 f000 bis #0xf0, sr
4478: fd3f jmp #0x4474 <__stop_progExec__+0x0>
447a <__ctors_end>
447a: 3040 c045 br #0x45c0 <_unexpected_>
447e <create_password>
447e: 3f40 0024 mov #0x2400, r15
4482: ff40 4100 0000 mov.b #0x41, 0x0(r15)
4488: ff40 6800 0100 mov.b #0x68, 0x1(r15)
448e: ff40 2300 0200 mov.b #0x23, 0x2(r15)
4494: ff40 4f00 0300 mov.b #0x4f, 0x3(r15)
449a: ff40 7400 0400 mov.b #0x74, 0x4(r15)
44a0: ff40 3f00 0500 mov.b #0x3f, 0x5(r15)
44a6: ff40 2c00 0600 mov.b #0x2c, 0x6(r15)
44ac: cf43 0700 mov.b #0x0, 0x7(r15)
44b0: 3041 ret
44b2 <get_password>
44b2: 3e40 6400 mov #0x64, r14
44b6: b012 8445 call #0x4584 <getsn>
44ba: 3041 ret
44bc <check_password>
44bc: 0e43 clr r14
44be: 0d4f mov r15, r13
44c0: 0d5e add r14, r13
44c2: ee9d 0024 cmp.b @r13, 0x2400(r14)
44c6: 0520 jne #0x44d2 <check_password+0x16>
44c8: 1e53 inc r14
44ca: 3e92 cmp #0x8, r14
44cc: f823 jne #0x44be <check_password+0x2>
44ce: 1f43 mov #0x1, r15
44d0: 3041 ret
44d2: 0f43 clr r15
44d4: 3041 ret
44d6 <unlock_door>
44d6: 3012 7f00 push #0x7f
44da: b012 3045 call #0x4530 <INT>
44de: 2153 incd sp
44e0: 3041 ret
44e2 <__do_nothing>
44e2: 3041 ret
44e4 .strings:
44e4: "Enter the password to continue"
4503: "Invalid password; try again."
4520: "Access Granted!"
4530 <INT>
4530: 1e41 0200 mov 0x2(sp), r14
4534: 0212 push sr
4536: 0f4e mov r14, r15
4538: 8f10 swpb r15
453a: 024f mov r15, sr
453c: 32d0 0080 bis #0x8000, sr
4540: b012 1000 call #0x10
4544: 3241 pop sr
4546: 3041 ret
4548 <putchar>
4548: 2183 decd sp
454a: 0f12 push r15
454c: 0312 push #0x0
454e: 814f 0400 mov r15, 0x4(sp)
4552: b012 3045 call #0x4530 <INT>
4556: 1f41 0400 mov 0x4(sp), r15
455a: 3150 0600 add #0x6, sp
455e: 3041 ret
4560 <getchar>
4560: 0412 push r4
4562: 0441 mov sp, r4
4564: 2453 incd r4
4566: 2183 decd sp
4568: 3f40 fcff mov #0xfffc, r15
456c: 0f54 add r4, r15
456e: 0f12 push r15
4570: 1312 push #0x1
4572: b012 3045 call #0x4530 <INT>
4576: 5f44 fcff mov.b -0x4(r4), r15
457a: 8f11 sxt r15
457c: 3150 0600 add #0x6, sp
4580: 3441 pop r4
4582: 3041 ret
4584 <getsn>
4584: 0e12 push r14
4586: 0f12 push r15
4588: 2312 push #0x2
458a: b012 3045 call #0x4530 <INT>
458e: 3150 0600 add #0x6, sp
4592: 3041 ret
4594 <puts>
4594: 0b12 push r11
4596: 0b4f mov r15, r11
4598: 073c jmp #0x45a8 <puts+0x14>
459a: 1b53 inc r11
459c: 8f11 sxt r15
459e: 0f12 push r15
45a0: 0312 push #0x0
45a2: b012 3045 call #0x4530 <INT>
45a6: 2152 add #0x4, sp
45a8: 6f4b mov.b @r11, r15
45aa: 4f93 tst.b r15
45ac: f623 jnz #0x459a <puts+0x6>
45ae: 3012 0a00 push #0xa
45b2: 0312 push #0x0
45b4: b012 3045 call #0x4530 <INT>
45b8: 2152 add #0x4, sp
45ba: 0f43 clr r15
45bc: 3b41 pop r11
45be: 3041 ret
45c0 <_unexpected_>
45c0: 0013 reti pc
We can start off by setting some sensible break points at main, check_password, get_password, 44c2, and 44ca. Instructions 44c2 and 44ca are interesting because at the end of the day, checking the password will probably come down to a cmp (comparison) instruction.

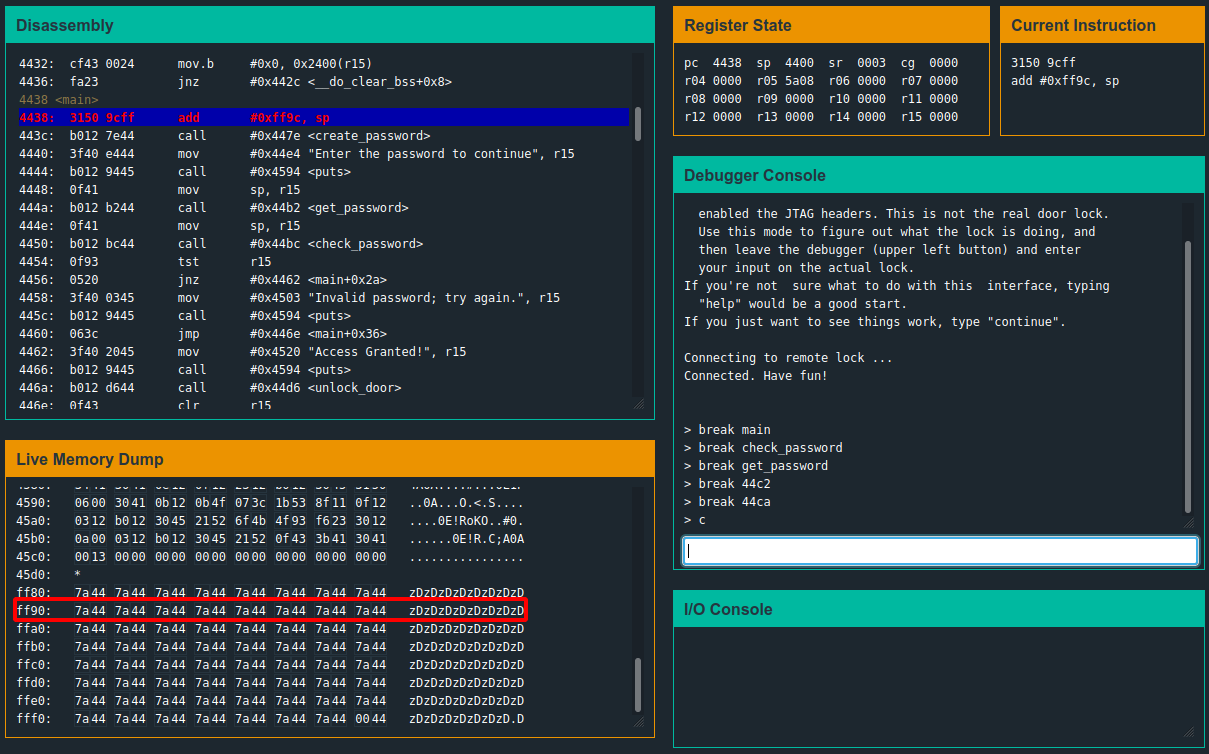

Main breakpoint:
This instruction is adding the values in 0xff9c to the stack pointer (r1 in MSP430). The stack pointer holds the memory address of the last byte which has been pushed to the stack. This means that further data will be pushed/pulled from here.
get_password breakpoint:
44b2: 3e40 6400 mov #0x64, r14
This is moving the value in 0x60 to r14 (which serves as a general purposes register in MSP430). We should keep an eye on what r14 is used for later in the program.

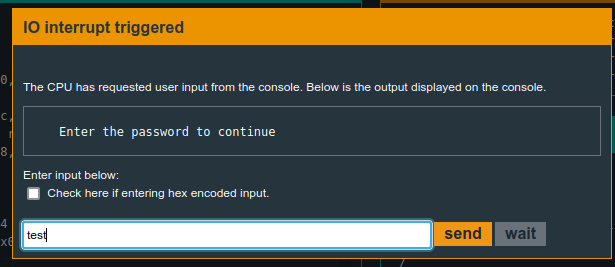

Continuing here brings us to an input prompt, we’ll put in test for now.
check_password breakpoint:
44bc: 0e43 clr r14
This clears the value that was in r14, rendering our previous instruction irrelevant.
44c2 breakpoint:
44c2: ee9d 0024 cmp.b @r13, 0x2400(r14)
This compares the value of register 13 to the memory address of (0x2400 + r14). Since r14 is currently empty, we just compare to 0x2400. This means that the hex at that memory address is probably our password!

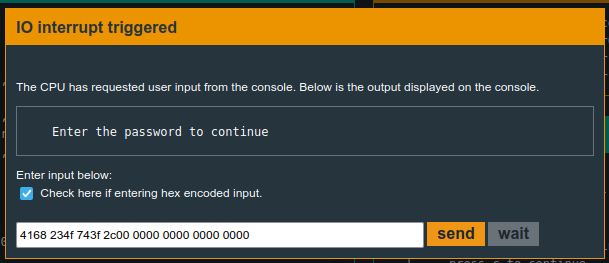

4168 234f 743f 2c00 0000 0000 0000 0000

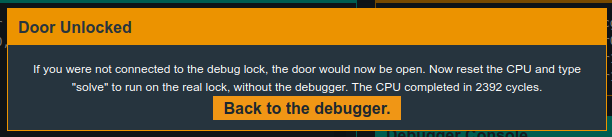

Success!
